Product Detail

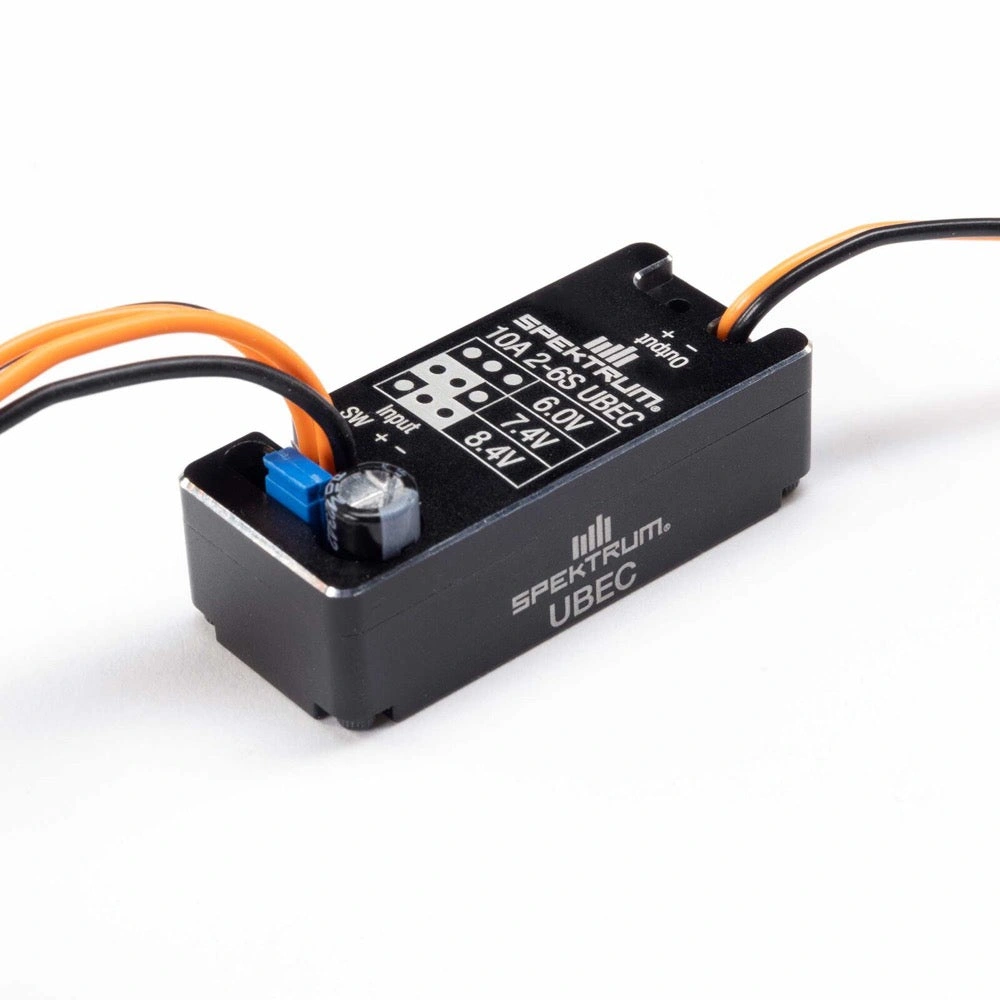

The UBEC uses an efficient DC-DC regulator chip with a conversion efficiency of more than 90%. The UBEC output voltage is adjustable in three stages (6.0/7.4/8.4 V) with a continuous current of 10A and a maximum of 15A. The voltage specifications allow the use of a wide range of servos and electrical equipment such as lights, winches, wipers, and more. The aluminum housing is designed to help dissipate heat and reduce electromagnetic interference. Additionally, the UBEC is equipped with overcurrent protection, output short-circuits protection, overheat protection, and IP67 waterproof dust design, and can be used with crawlers, trucks, aircraft, and other electric models.

Features

• High-efficiency DC-DC regulator chip for transfer efficiency of over 90%

• Adjustable output voltage (6.0V/7.4V/8.4V) applicable for devices with different voltages

• Handles 10 amps continuous current, 15 amps instantaneous current

• Multiple protections, including overcurrent, short circuit, overheat, and IP67 waterproof dust design

• Aluminum housing for quick heat dissipation and less electromagnetic interference

Specs

• Product Height: 0.63' (16 mm)

• Product Length: 1.77' (45 mm)

• Product Weight: 34g (including wires)

• Product Width: 0.78' (20 mm)
